Sew-On Tape
Sew-On Tape

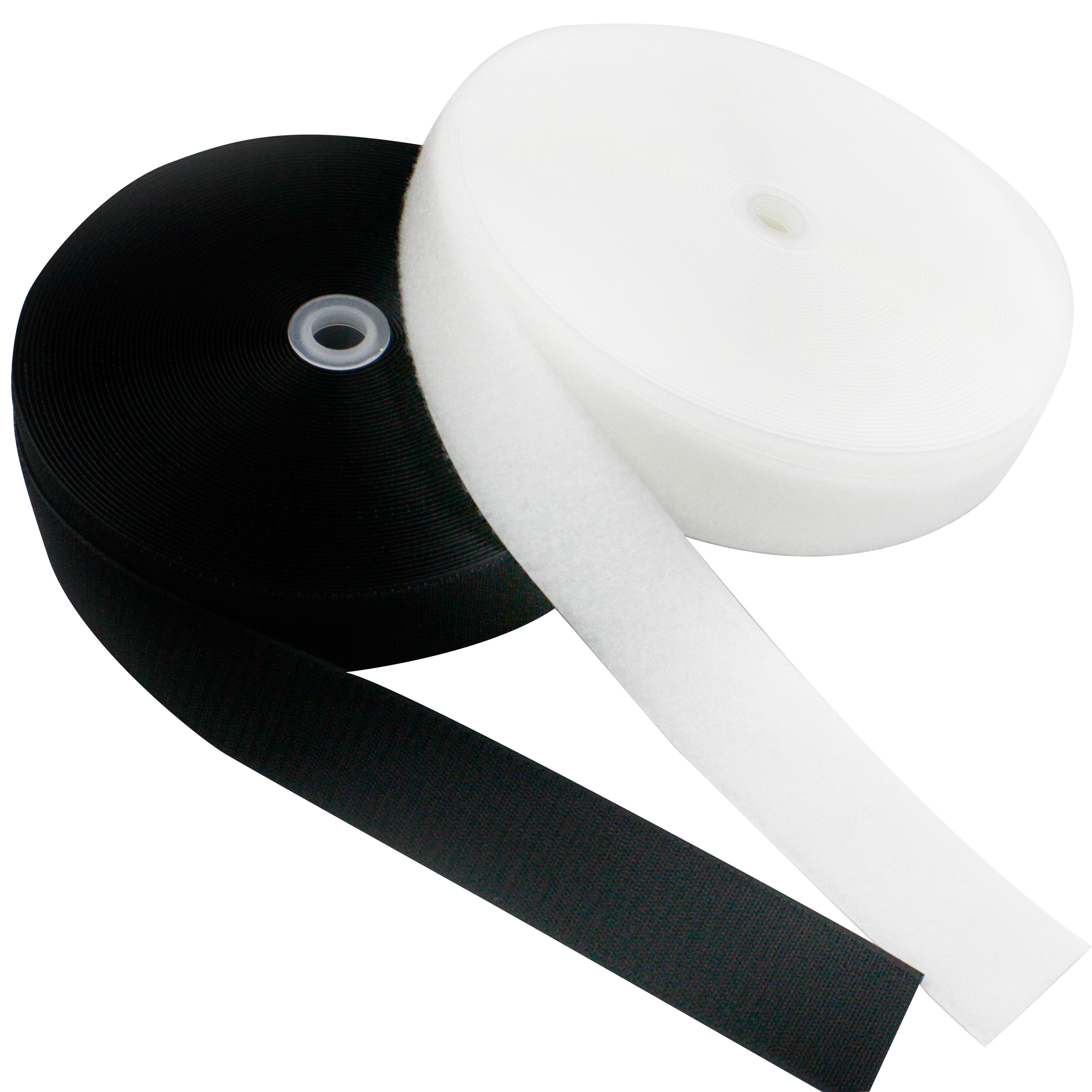

LOVETEX® Brand sew-on tape is available in a full range of widths and colors, sew-on hook and loop can be used for a wide variety of sewing applications. Recommended for garment, sports and medical industries.
Standard Width
Width
Range
Inch
mm
mm
5/8
16
+/-1.0
3/4
20
+/-1.0
1
25
+/-1.0
1-1/4
30
+/-1.0
1-1/2
38
+/-1.5
2
50
+/-2.0
3
75
+/-3.0
4
100
+/-3.0
5
125
+/-3.0
6
150
+/-5.0
6.7
170
>170
Standard Put-Up
25yds/25m, 50yds/50m Per Roll,
Jumbo Reel, Dispenser Box.
Colors Available
DYE-TO-MATCH colors are available upon request.
Performance Characteristics
Closure performance:Fastening length 50mm
|
WIDTH |
|
 |
|||||
|
INCH |
MM |
||||||
|
|
|
MINIMUM |
MINIMUM |
||||
|
5/8 |
16 |
5.0KG |
180GM |
||||
|
3/4 |
20 |
7.0KG |
265GM |
||||
|
1 |
25 |
9.0KG |
345GM |
||||
|
1 1/4 |
30 |
10.0KG |
410GM |
||||
|
1 1/2 |
38 |
14.5KG |
500GM |
||||
|
2 |
50 |
17.0KG |
650GM |
||||
|
4 |
100 |
33.5KG |
1,300GM |
||||
Under conditions of 20ºC& 65%RH
Durability
● 2000 Times of peeling cycle : Under 15% No Fluffing on Loop tape.
● 5,000 Times of peeling cycle : Under 25% Little Fluffing on Loop tape.
● 10,000 Times of peeling cycle : Under 35% Obvious Fluffing on Loop tape.
● 20,000 Times of peeling cycle : Under 50% Fluffing Throughout on Loop tape.
Product Data
|
Thickness |
Weight |
Hook/Loop Number |
|
Unit |
Hook |
Loop |
Unit |
Hook |
Loop |
Unit |
Hook |
Loop |
|
Inch |
≥0.075 |
≥0.075 |
g/Inch2 |
≥0.2 |
≥0.25 |
Inch2 |
≥300 |
≥640 |
|
mm |
≥1.90 |
≥1.90 |
g/cm2 |
≥0.031 |
≥0.038 |
|
|
Standard Widths/Put-Ups
|
Inch |
Mm |
Per Roll |
Sew-on |
Adhesive |
|
5/8 |
16 |
25M/27.5Y |
60R/1500M/1650Y |
50R/1250M/1375Y |
|
3/4 |
20 |
25M/27.5Y |
50R/1250M/1375Y |
40R/1000M/1100Y |
|
1 |
25 |
25M/27.5Y |
40R/1000M/1100Y |
36R/900M/990Y |
|
1-1/4 |
30 |
25M/27.5Y |
36R/900M/990Y |
30R/750M/825Y |
|
1-1/2 |
38 |
25M/27.5Y |
28R/700M/770Y |
24R/600M/660Y |
|
2 |
50 |
25M/27.5Y |
20R/500M/550Y |
18R/450M/495Y |
|
4 |
100 |
25M/27.5Y |
10R/250M/275Y |
10R/250M/275Y |
|
5 |
125 |
25M/27.5Y |
8R/200M/220Y |
8R/200M/220Y |
|
6 |
150 |
25M/27.5Y |
6R/150M/165Y |
6R/150M/165Y |
|
6.7 |
170 |
25M/27.5Y |
6R/150M/165Y |
6R/150M/165Y |
Package (Carton=32.cut)
Special put-ups on request:50-meter roll,jumbo reel,dispenser box,etc.
Color Fastness
Item
Standard
Evaluation
Against Washing
AATCC-TM 61-2A-2003
ISO105 C03:1989
Grade 4 or Superior
Against Water
AATCC-TM 107-2002
ISO 105 E01:1996
Grade 4 or Superior
Against Sweat
AATCC-TM 15-2002
ISO 105 E04:1994
Grade 4 or Superior
Against Rubbing
AATCC-TM 8-2001
ISO 105 X12:2001
Grade 4 or Superior
Certification
Standard 100 by OEKO-TEX
ISO 9001-2008
